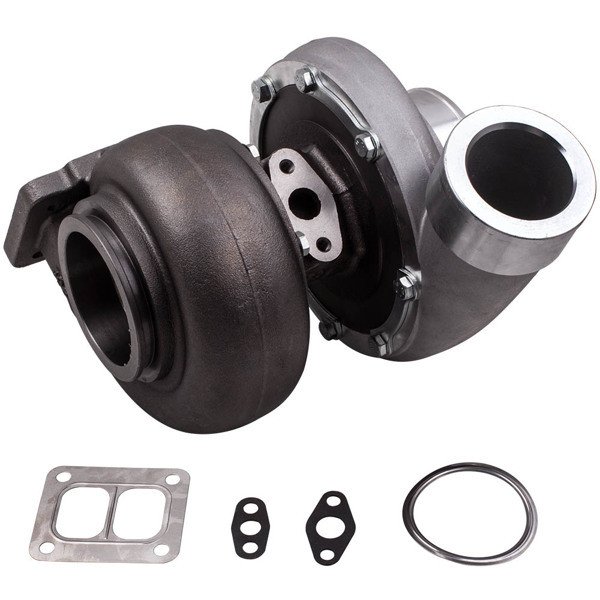

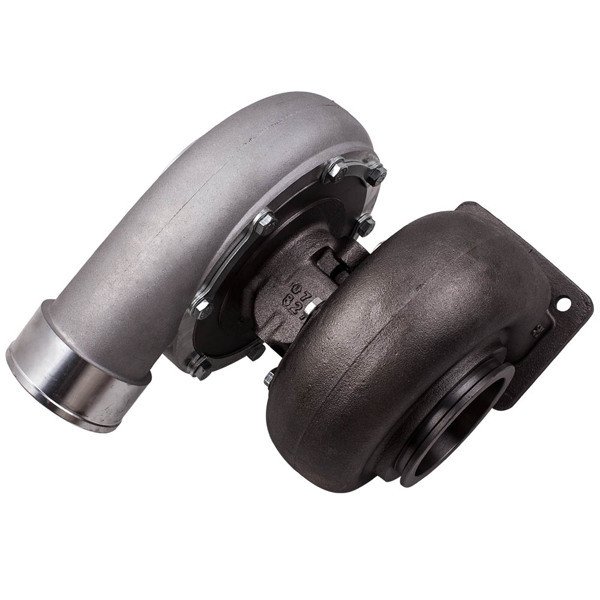

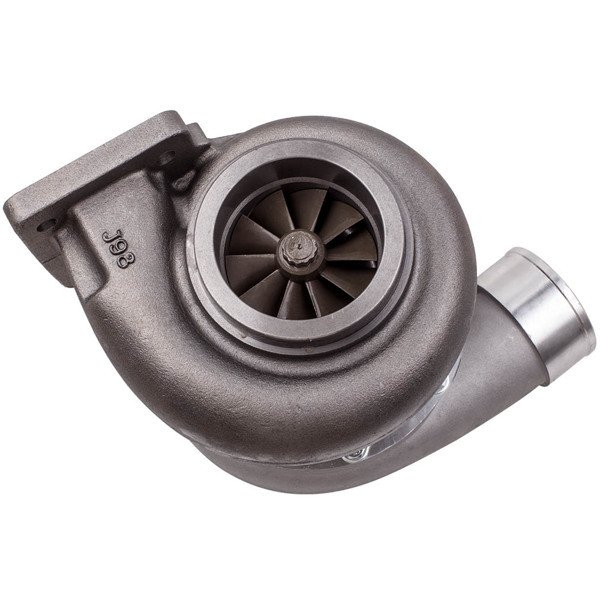

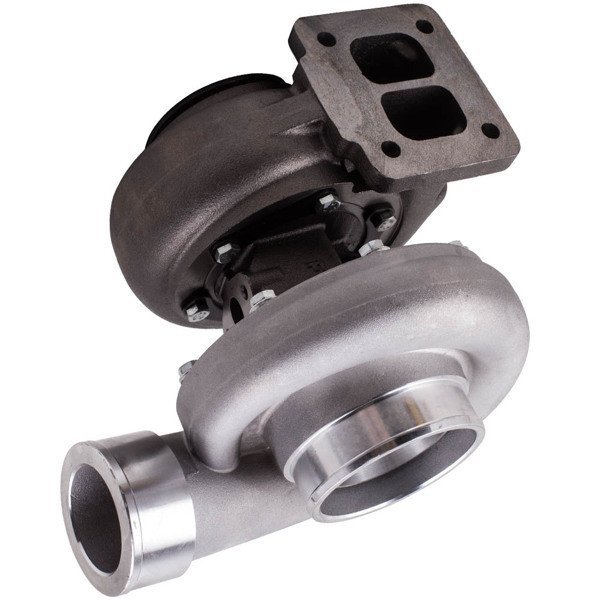

GT45 T4 V-Band 1.05 A/R 98mm Huge 600-800HPs Boost Upgrade Racing Turbo charger
Details:
Introductions:
A turbocharger; colloquially known as a turbo; is a turbine-driven; forced induction device that increases an internal combustion engine's efficiency and power output by forcing extra compressed air into the combustion chamber.
Application:
This turbo is a universal application turbo; some modification may be required based on individual vehicle.
Perfect for all 4.0L-6.0L engine
Specification:

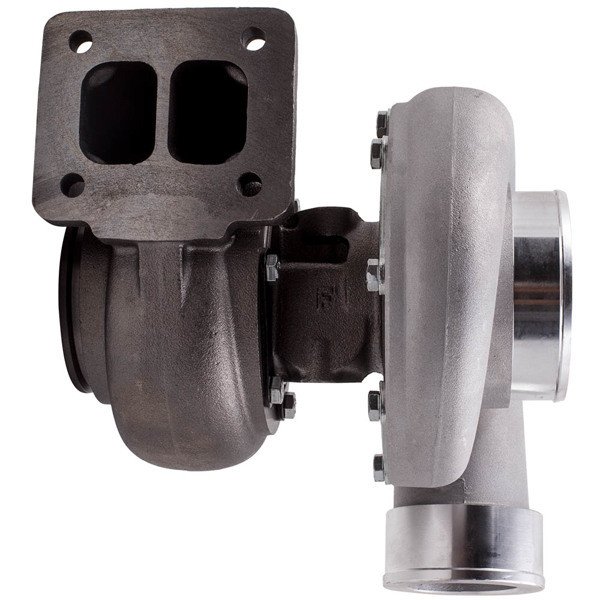

Exhaust Inlet Flange: T4 Flange
Exhaust Outlet Flange: V-Band Flange (ID: 82mm; OD: 111mm)
Bearing Type: Wet Float
Cooling Type: Oil Cooled
Wastegate:External
Hosepower: Up to 600+HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New
Package Size:30x 30x 27 cm
Package Weight: 16400g

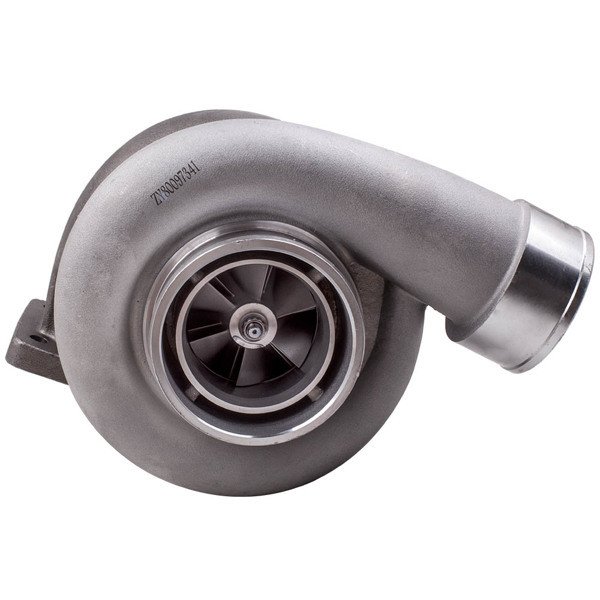

Compressor:
Compressor Trim:49.6
Compressor Inducer Diameter:69 mm
Compressor Exducer Diameter:98 mm
Compressor Air Inlet Size: 107mm
Compressor Air outlet Size: 86.3mm
Compressor A/R:0.66
Turbine:
Turbine Trim:77.6
Turbine Inducer Diameter:88 mm
Turbine Exducer Diameter:77.5 mm
Turbine A/R:1.05
Product Material:
1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel:K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing:ZL104 aluminum with lightweight
4. Compressor wheel/blades:Cast aluminium blades – superior air tightness corrosion resistance
Product Performance:
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
NOTE:
* Replace; repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger; the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply; foreign bodies in the intake area; crankcase ventilation without function; etc.)!
Notice:
California Prop 65 Warning
Code:MXR02FXSY
